| Place of Origin | Guangdong, China |
| Series/Model | ES-BOX12 / ES-BOX12 Max+ |
| Type | Wall Mounted LiFePO4 Battery |
| Brand | EUE POWER |
| MOQ | 10 pcs |
| OEM | Available |
Product Advantages
Performance Advantages
Safe & stable:
Built-in BMS provides multiple protection functions. Communication functions enable real-time data monitoring for safer and more stable operation.
Flexible & convenient:
Simple design enables fast commissioning. Multiple installation options are supported for easy installation, with compatibility for multi-brand inverters.
Smart operation & management:
Remote O&M improves operation efficiency, while remote diagnosis and OTA upgrades make system management more intelligent and convenient.
High performance:
High cell consistency and low internal resistance ensure stable battery discharge. The system supports high-capacity charge and discharge performance.

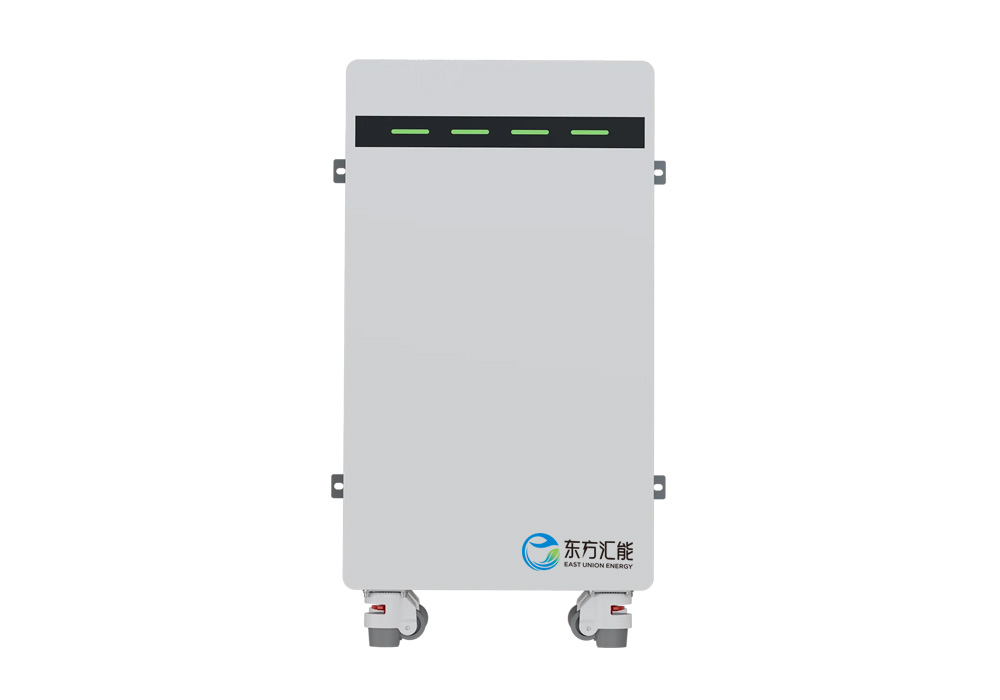

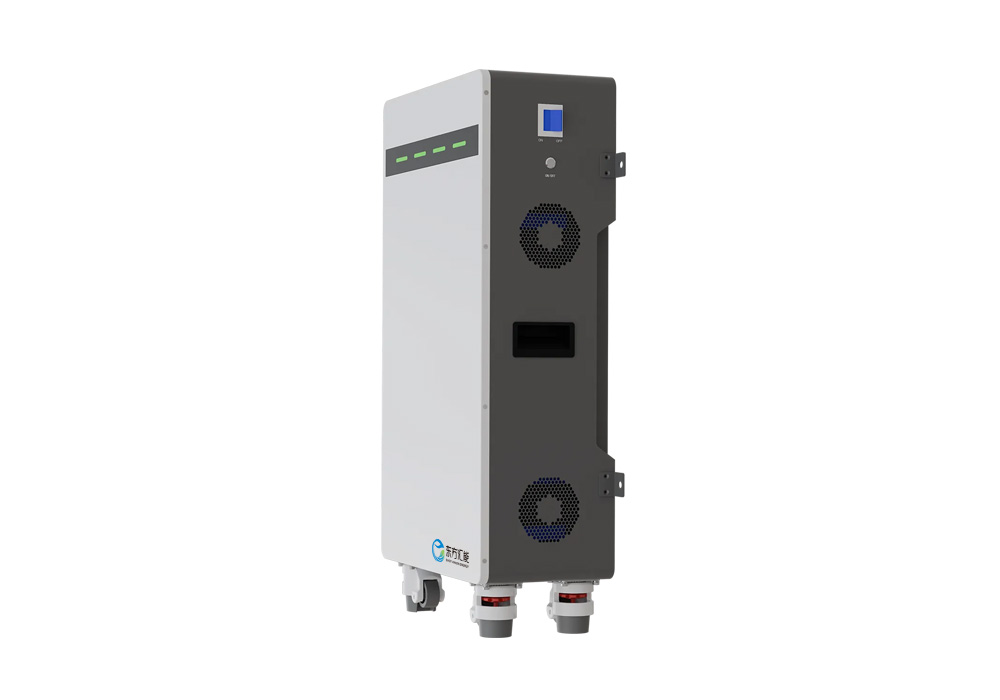

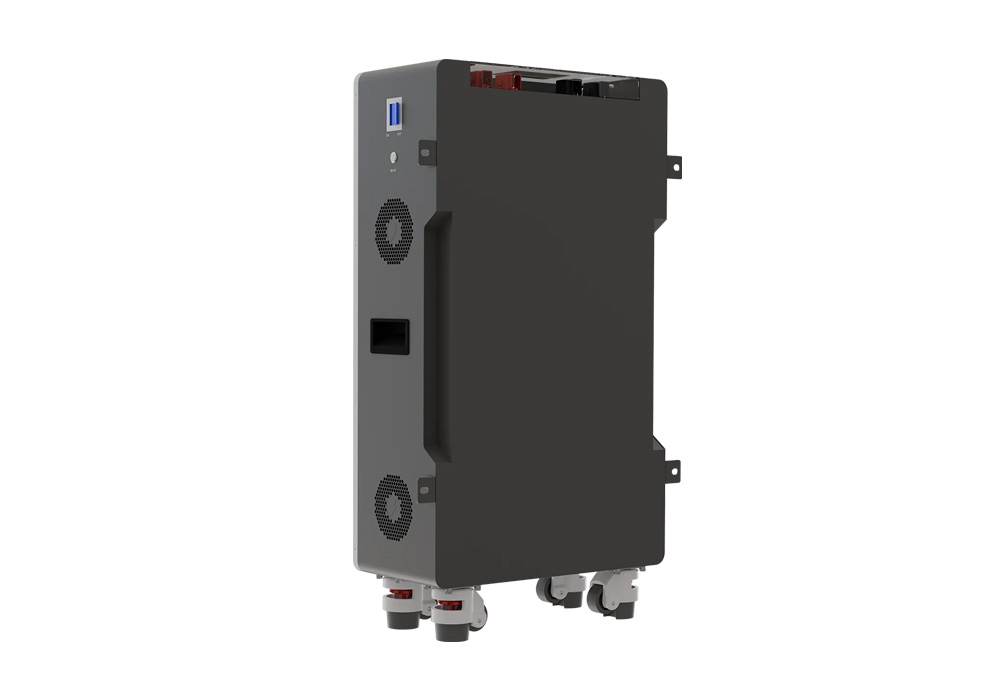

Product Photos
Technical Parameters
|
Product Model |
ES‑BOX12 |
ES‑BOX12 PRO |
ES‑BOX12 Plus |
ES‑BOX12 MAX |
ES‑BOX12 MAX+ |
|---|---|---|---|---|---|
|
Nominal Energy |
5.12kWh |
7.68kWh |
10.24kWh |
14.34kWh |
16.08kWh |
|
Nominal Voltage |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
|
Nominal Capacity |
100Ah |
150Ah |
200Ah |
280Ah |
314Ah |
|
Cell Type |
LFP |
LFP |
LFP |
LFP |
LFP |
|
Standard Charge Voltage |
56.8V |
56.8V |
56.8V |
56.8V |
56.8V |
|
Max Discharge Current |
100A |
150A |
150A |
200A |
200A |
|
Discharge Cut‑Off Voltage |
44.8V |
44.8V |
44.8V |
44.8V |
44.8V |
|
Parallels Function |
Support 16 Units In Parallels (All Models) |
||||
|
Communication Interface |
RS485/USB/RS232/CAN (All Models) |
||||
|
Cycle Life |
≥8000 Cycles(25°C±2°C,0.5C,80%DOD@65%EOL) |
≥10000 Cycles(25°C±2°C,0.35C,80%DOD@65%EOL) |
|||
|
Charge temperature range |
0‑55℃ |
0‑55℃ |
0‑55℃ |
0‑55℃ |
0‑55℃ |
|
Discharge temperature range |
-20‑55℃ |
-20‑55℃ |
-20‑55℃ |
-20‑55℃ |
-20‑55℃ |
|
Certification |
Pack: CEI 0‑21/CE/IEC 62619/UL1973 by Intertek/MSDS/UN38.3 Cell: UL 1642/IEC 62619/CE/EMC/ROHS/MSDS/UN38.3 (All Models) |
||||
|
Dimensions |
480600150mm |
480650180mm |
480650225mm |
490840242mm |
490840242mm |
|
Weight |
52Kg |
69Kg |
89Kg |
123Kg |
127Kg |
|
Installation method |
Wall Mounted/Floor Standing (All Models) |
||||
|
Warranty |
5 Years(Under Warranty Terms) (All Models) |
||||
|
Energy Throughput "1" |
11MWh |
16MWh |
22MWh |
31MWh |
35MWh |
|
Optional |
WiFi Remote Monitoring (All Models) |
||||
