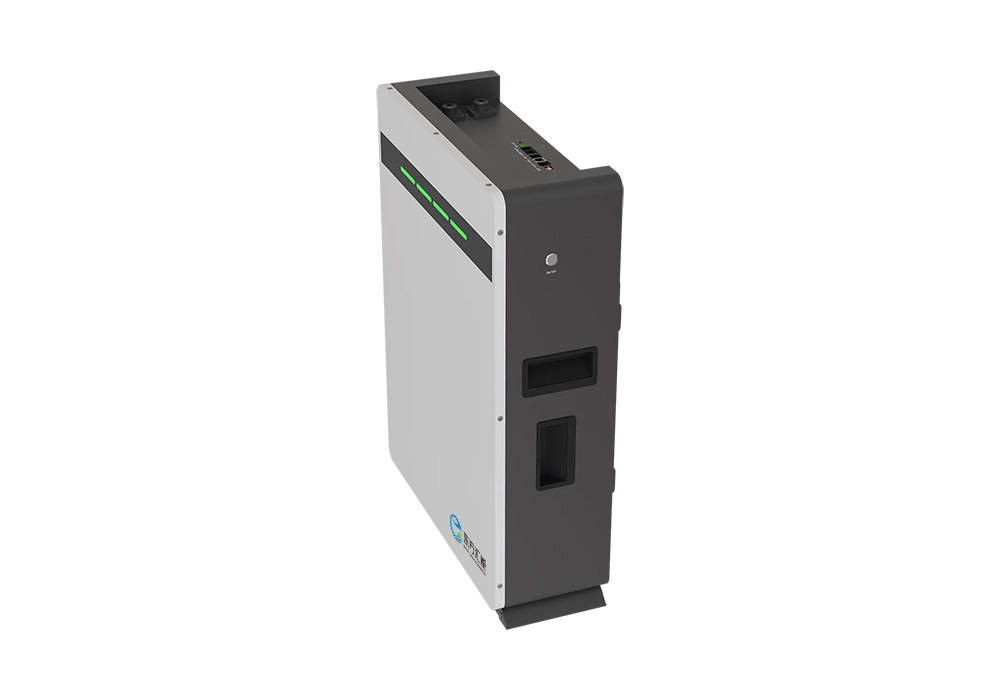

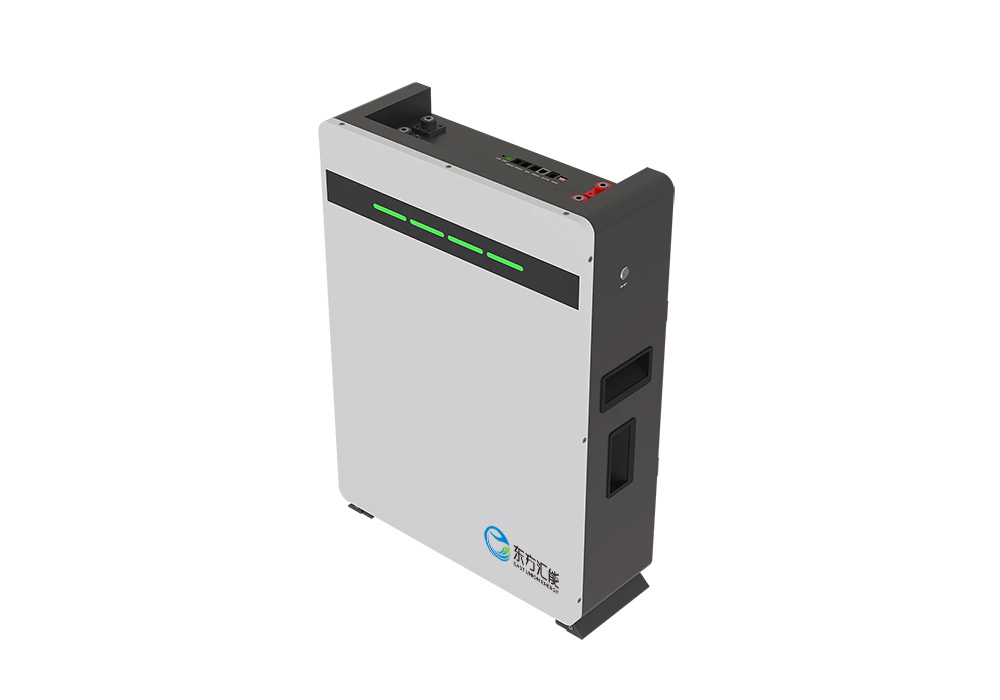

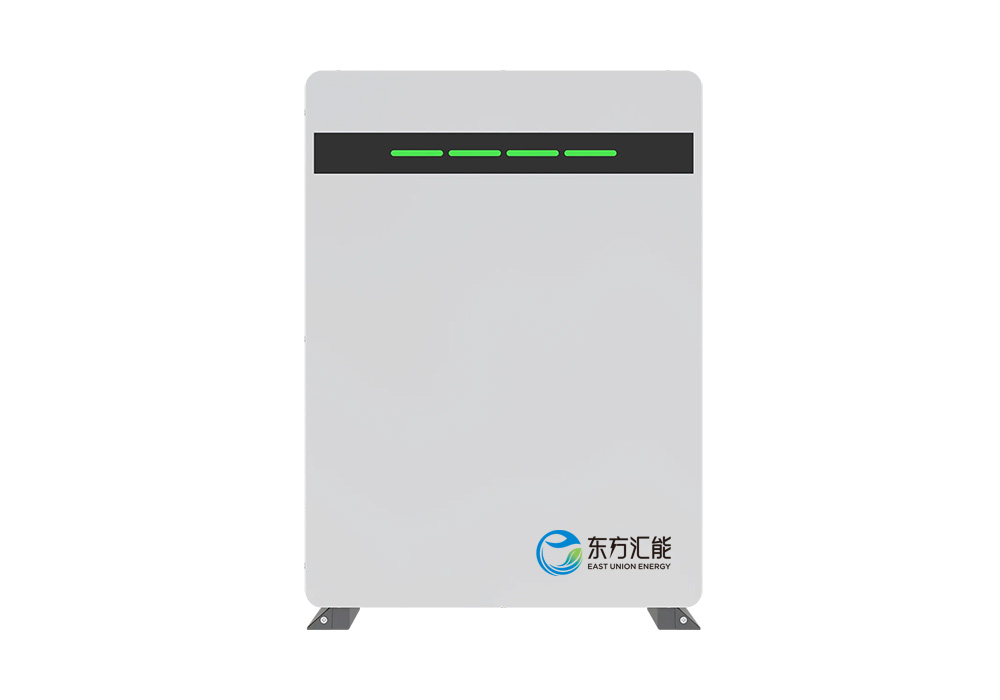

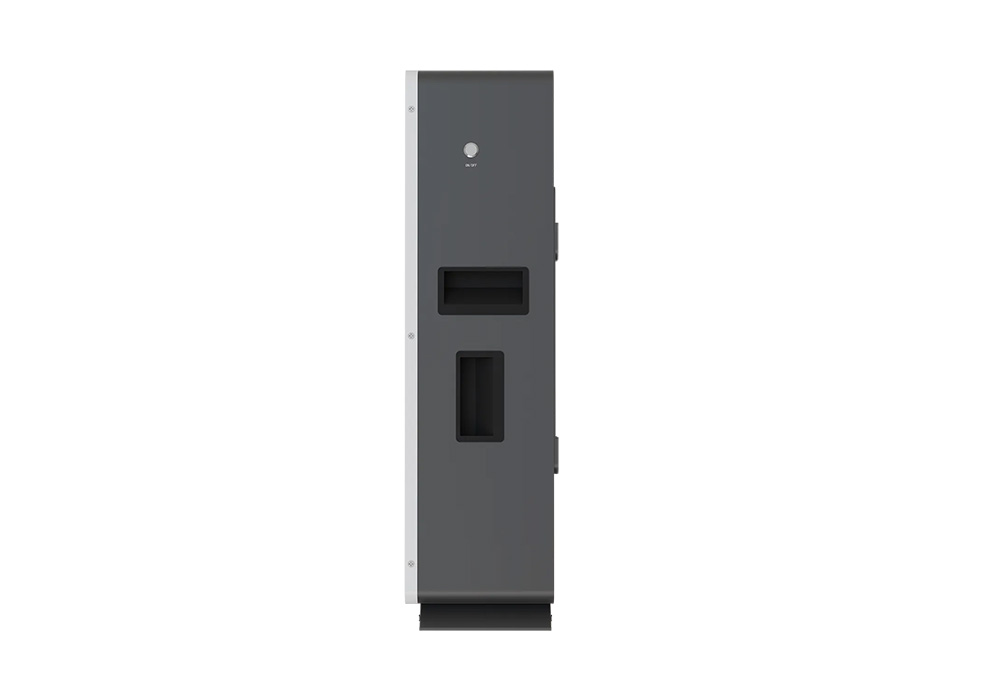

51.2V 7.68kWh Wall Mounted Energy Storage-East Union Energy (Shenzhen) Technology Co., Ltd.

Product Advantages

Smart BMS

Intelligently identify the master-slave batteries auto DIP address
Easy maintenance

Compact and lightweight for easy installation
Deep Cycle

≥8000 Cycles (25℃±2℃, 0.5C, 80% DOD @65% EOL)
Warranty

Up to 5 years

Performance Advantages

Safe & stable:

Built-in BMS provides multiple protection functions. Communication functions enable real-time data monitoring for safer and more stable operation.

Flexible & convenient:

Simple design enables fast commissioning. Multiple installation options are supported for easy installation, with compatibility for multi-brand inverters.

Smart operation & management:

Remote O&M improves operation efficiency, while remote diagnosis and OTA upgrades make system management more intelligent and convenient.

High performance:

High cell consistency and low internal resistance ensure stable battery discharge. The system supports high-capacity charge and discharge performance.

Technical Parameters

Product Model	ES‑BOX12	ES‑BOX12 PRO	ES‑BOX12 Plus	ES‑BOX12 MAX	ES‑BOX12 MAX+
Nominal Energy	5.12kWh	7.68kWh	10.24kWh	14.34kWh	16.08kWh
Nominal Voltage	51.2V	51.2V	51.2V	51.2V	51.2V
Nominal Capacity	100Ah	150Ah	200Ah	280Ah	314Ah
Cell Type	LFP	LFP	LFP	LFP	LFP
Standard Charge Voltage	56.8V	56.8V	56.8V	56.8V	56.8V
Max Discharge Current	100A	150A	150A	200A	200A
Discharge Cut‑Off Voltage	44.8V	44.8V	44.8V	44.8V	44.8V
Parallels Function	Support 16 Units In Parallels (All Models)

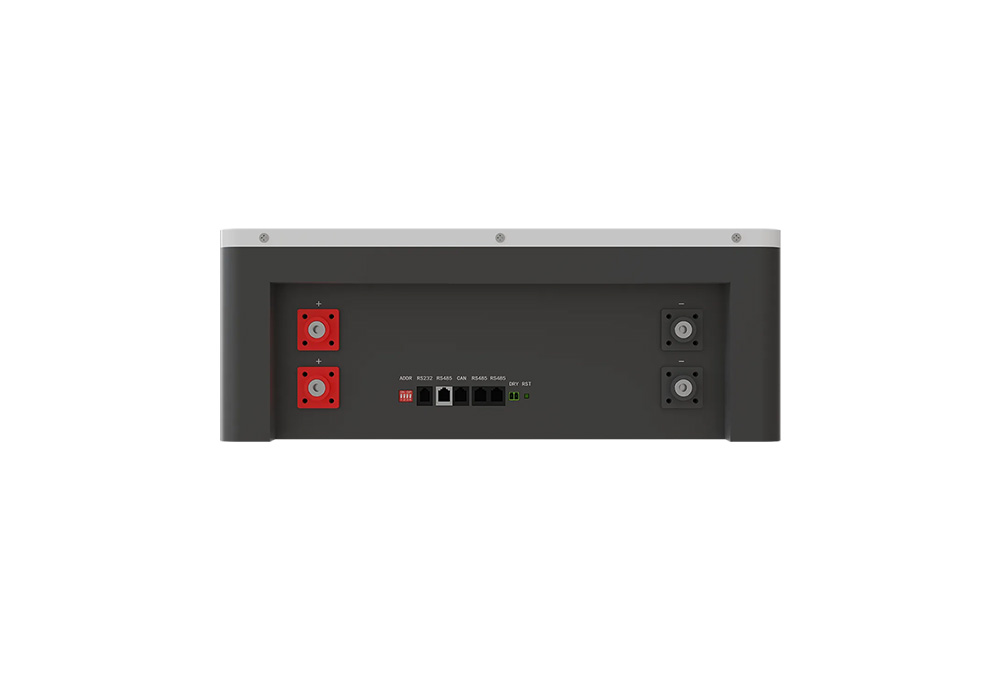

Communication Interface	RS485/USB/RS232/CAN (All Models)
Cycle Life	≥8000 Cycles(25°C±2°C,0.5C,80%DOD@65%EOL)			≥10000 Cycles(25°C±2°C,0.35C,80%DOD@65%EOL)
Charge temperature range	0‑55℃	0‑55℃	0‑55℃	0‑55℃	0‑55℃
Discharge temperature range	-20‑55℃	-20‑55℃	-20‑55℃	-20‑55℃	-20‑55℃
Certification	Pack: CEI 0‑21/CE/IEC 62619/UL1973 by Intertek/MSDS/UN38.3 Cell: UL 1642/IEC 62619/CE/EMC/ROHS/MSDS/UN38.3 (All Models)
Dimensions	480600150mm	480650180mm	480650225mm	490840242mm	490840242mm
Weight	52Kg	69Kg	89Kg	123Kg	127Kg

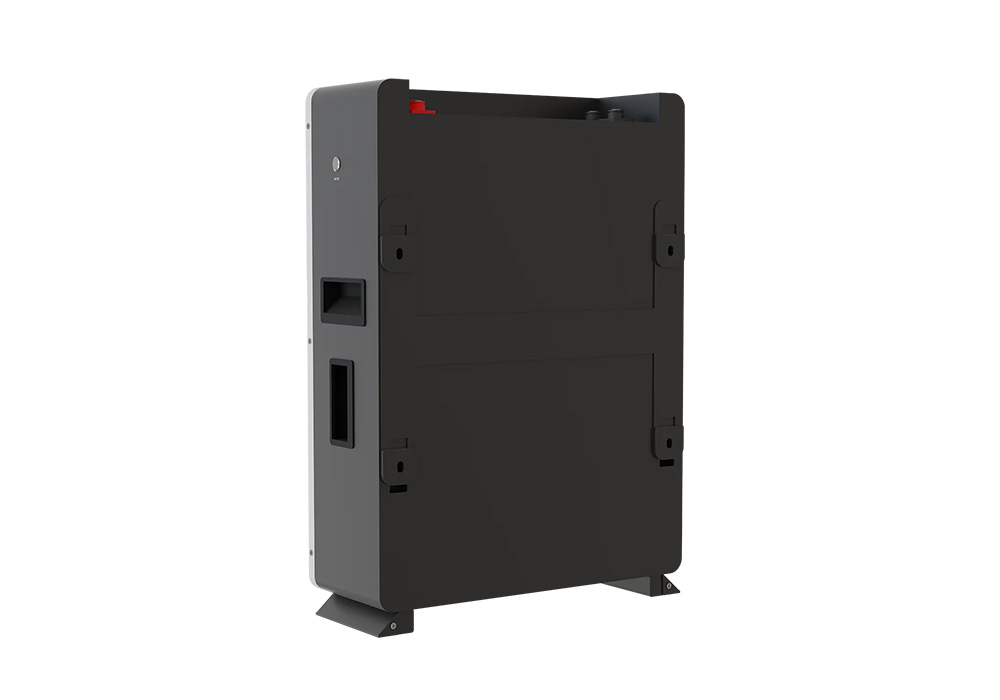

Installation method	Wall Mounted/Floor Standing (All Models)
Warranty	5 Years(Under Warranty Terms) (All Models)
Energy Throughput 1	11MWh	16MWh	22MWh	31MWh	35MWh
Optional	WiFi Remote Monitoring (All Models)

Reliable Power Equipment,
Your Trusted Partner.

Contacts

Room 1102, Block A, Building 6, Expo Bay Zhonggang Plaza, No. 83 Zhanjing Rd, Bao’an District, Shenzhen, China 518103

+86 180 9898 3521

sales@euepower.com

Mon - Fri: 8:30 - 17:30 BJT

Place of Origin	Guangdong, China
Series/Model	ES-BOX12 / ES-BOX12 Pro
Type	Wall Mounted LiFePO4 Battery
Brand	EUE POWER
MOQ	10 pcs
OEM	Available
