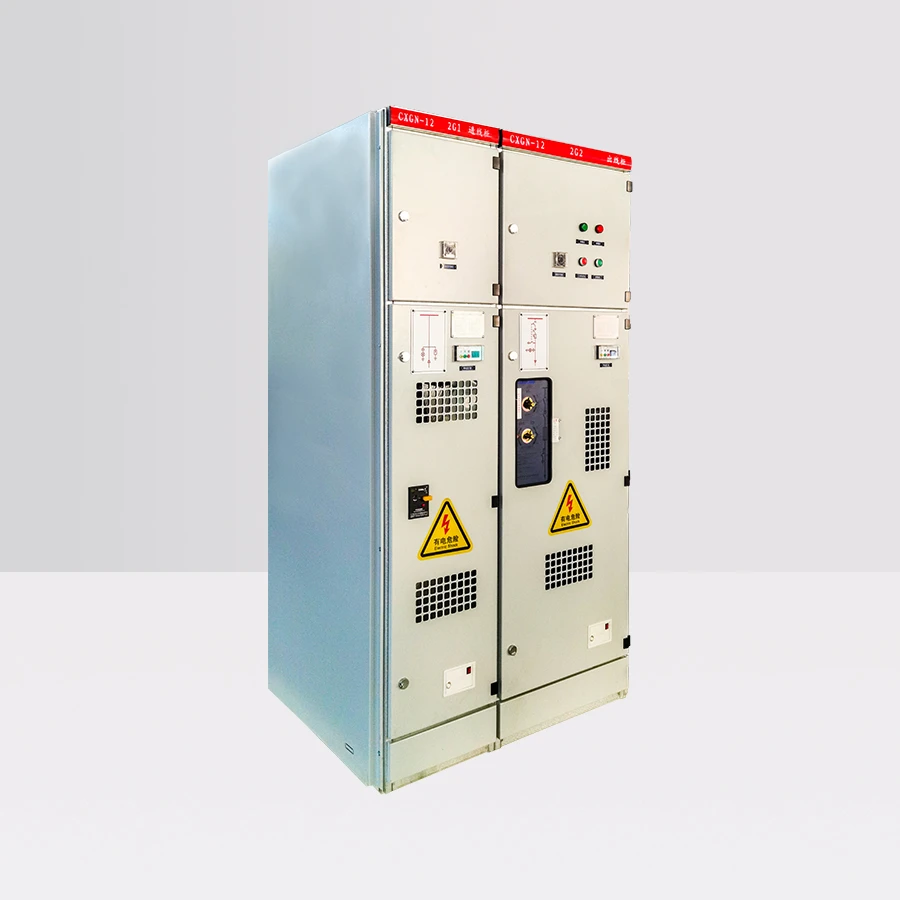

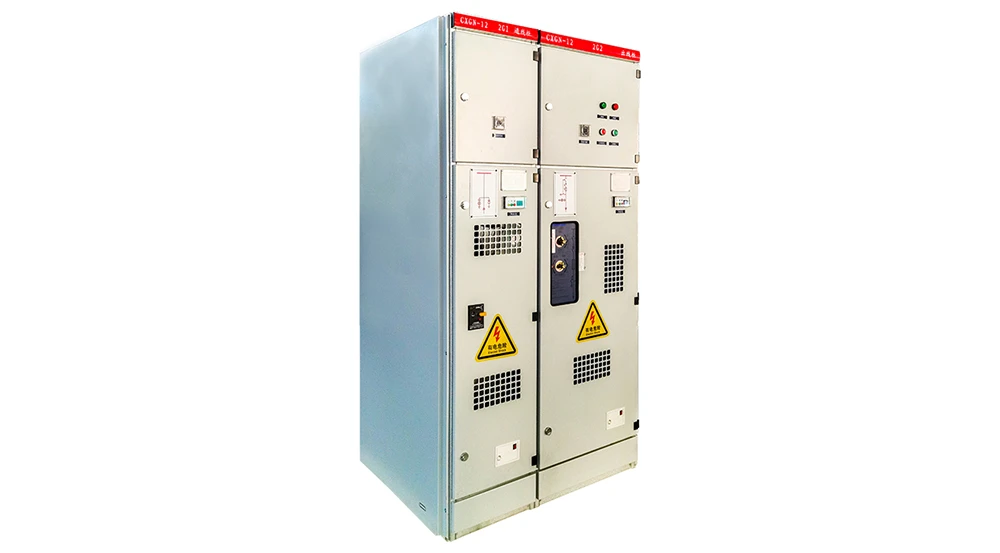

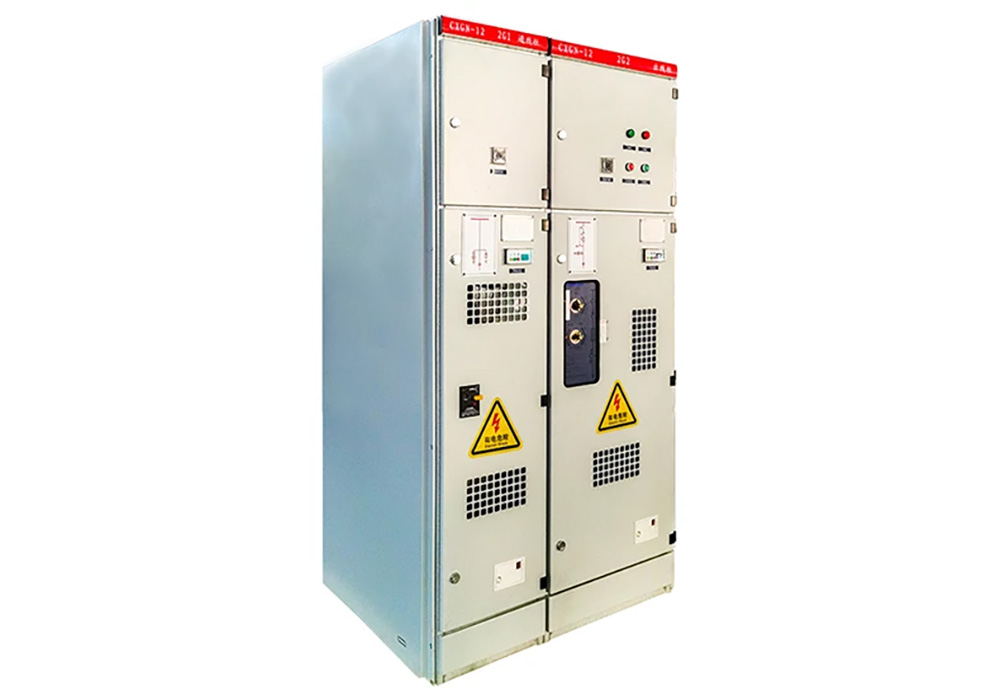

The CXGN-12 Fixed Indoor Cubicle-Type Switchgear is a high-voltage distribution device independently developed by our company. With a combined C-type and G-type assembled structure, it supports flexible main wiring schemes, reduces processing and assembly time, and improves project delivery efficiency.

As a fixed metal-enclosed high-voltage switchgear, the CXGN-12 is widely used for the starting, switching and operation of high-voltage motors. It supports frequent operation and provides safe, reliable performance with no risk of explosion or fire.

The product is recommended for use with our independently developed vacuum load switches and vacuum circuit breakers.

It is widely used in 10kV indoor power distribution systems for industrial and mining enterprises, construction projects, municipal infrastructure and new energy applications, providing power receiving, distribution, control, and protection.

1. Well-designed structure: The frame is formed by bending thin steel plates and assembled with high-strength bolts and nuts, providing high mechanical strength and light weight. The cabinet surface is powder-coated, offering excellent corrosion resistance, oxidation resistance and an attractive appearance.

2. Flexible operation: The circuit breaker, grounding switch, and cabinet door are equipped with reliable mechanical five-prevention interlocks, ensuring safe and flexible operation. The product is easy to install and maintain, with a long maintenance cycle. Complete configuration schemes are available and can be flexibly combined to meet the requirements of various power distribution systems.

3. High protection level: The switchgear is equipped with comprehensive anti-misoperation measures and reliable mechanical interlocks, meeting the five-prevention requirements of power systems.

4. Stable and reliable: Observation windows are provided on the doors of the circuit breaker compartment and cable compartment, allowing easy viewing of the circuit breaker position and status, as well as the operating condition of incoming and outgoing cables.

Specification		Unit	Data
Rated voltage		kV	12
Rated current		kA	630、1250
Rated frequency		Hz	50
Rated short-time withstand current		kA	20-50、4S
Rated peak withstand current		kV	50-125
Rated insulation level	1min Power frequency withstand voltage (effective value)	kV	42/48
	Lightning impulse withstand voltage (peak)		75/85
Protection level		-	IP3X
