The 6–30kVA online UPS series is a fully digital power protection solution based on online double-conversion topology and DSP control technology, delivering stable, clean and continuous power for critical loads.

Equipped with SPWM technology, high-efficiency IGBT power modules and an output isolation transformer, the system provides pure sine wave output with stable voltage and frequency, protecting equipment from grid disturbances and power anomalies.

With wide input voltage range, excellent generator compatibility, zero transfer time and strong load adaptability, it is ideal for finance, telecommunications, government, enterprise and other critical power applications.

•Power range: 6-30KVA

•Operating mode: Intelligent power frequency online mode

•Power supply mode: 1-phase in/1-phase out; 3-phase in/1-phase out

•Applications: Financial institutions, data centers, telecom networks, tax administration, transportation hubs, insurance firms, and government facilities.

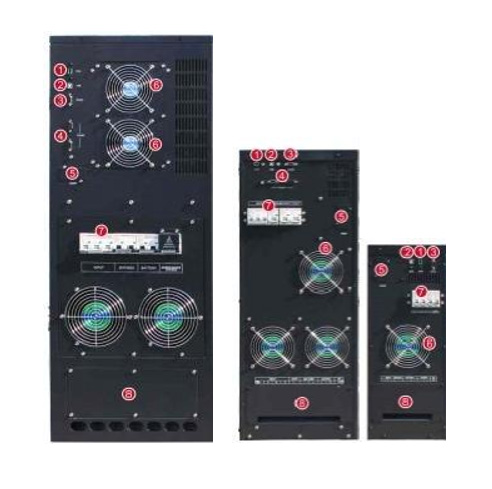

1. EPO

2. USB

3. RS232

4. Parallel port (optional)

5. SNMP (optional)

6. Fan

7. Breaker

8. Terminal

Flexible environmental adaptability

•The UPS is designed for harsh electrical environments, with a wide input voltage range of 165–275 VAC for 1-phase in/1-phase out models and 285–475 VAC for 3-phase in/1-phase out models. Its broad 40–70 Hz input frequency range ensures compatibility with unstable grids and fuel generators.

•It supports mixed loads and offers strong overload capability for reliable operation under demanding conditions. Output voltage and frequency are configurable, supporting 220/230/240 V and 50/60 Hz to meet different application requirements.

Reliable dual-DSP control

•With dual-DSP control and an independent bypass power supply, the system monitors the main DSP in real time. In case of abnormal operation, the UPS automatically transfers to bypass mode and triggers an alarm, ensuring continuous power supply for critical loads.

Configurable and high-efficiency charging system

•Charging current is easily configurable via DIP switches, offering precise settings of 2A, 4A, 6A, 8A, 10A, and 12A to suit various battery configurations. For models rated at 10kVA and above, the system supports dual parallel charging panels, enabling a robust maximum charging current of up to 24A for significantly reduced recharge times.

Supports dual input, series hot standby, and parallel operation

•This UPS supports dual input, series hot standby, and parallel operation configurations. These features are designed for straightforward implementation and ease of use, significantly enhancing overall system reliability and scalability.

Intelligent rectifier protection

•The system continuously monitors the rectifier's input voltage. In the event of an overvoltage condition, it automatically disconnects the rectifier to effectively isolate and safeguard the inverter from potential damage.

Diversified communication modes

•Standard communication interfaces include RS232 and USB. Optional interfaces include RS485, SNMP and dry contacts.

Battery cold start & Manual maintenance
