Strong UV, moisture & pollution resistance
Low partial discharge & high accuracy
Compact size, light weight, flexible installation.Overview
Overview
This JDZW-10R Pole Switch Outdoor Voltage Transformer features fully enclosed epoxy resin casting and silicone rubber insulation. Designed for outdoor use, it offers UV, pollution and moisture resistance, and is suitable for tropical environments. No special maintenance is required except regular surface cleaning.

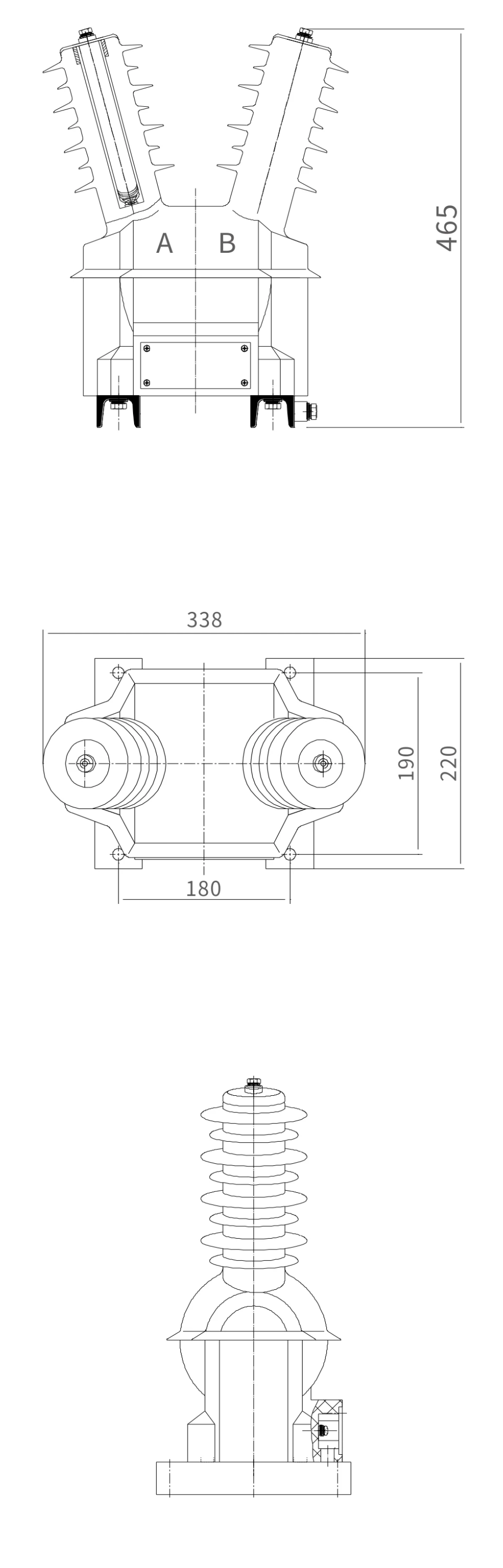

Structural Features
Structural Features
Performance Advantages
Epoxy resin casting provides reliable insulation, with strong moisture and pollution resistance.
Stable and accurate operation
Low partial discharge and high accuracy ensure stable and reliable long-term operation.
Strong environmental adaptability
UV-resistant, pollution-resistant and moisture-resistant, suitable for outdoor and tropical environments.
Maintenance-free design
No special maintenance is required except regular surface cleaning.
Compact and lightweight
Compact size, light weight and small footprint make installation simple and flexible.

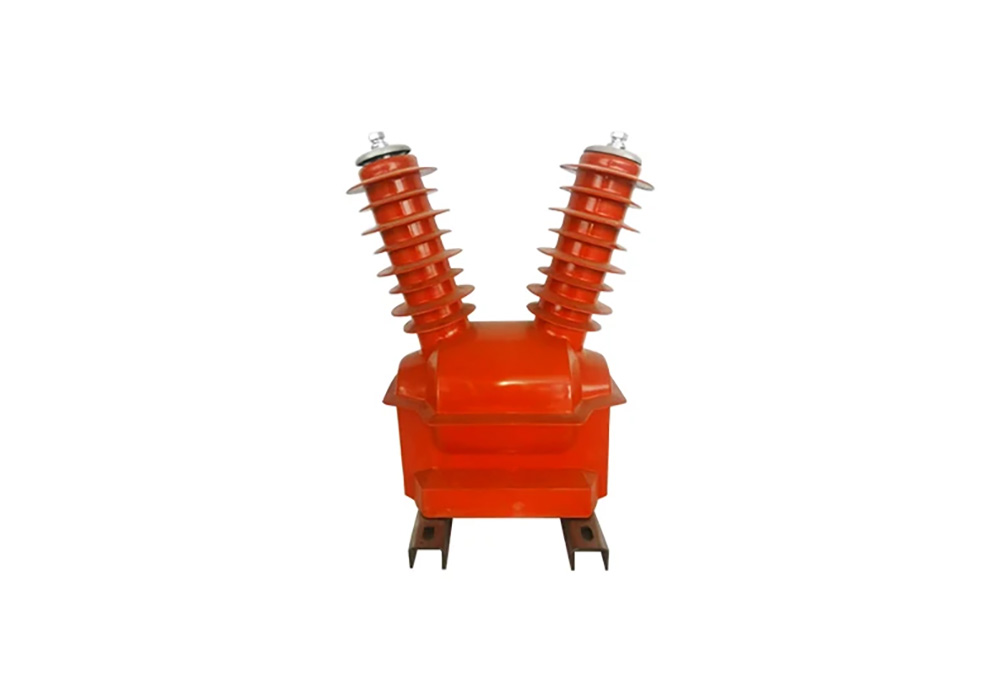

Product Photos
Technical Parameters
| Rated Voltage Ratio (kV) | Accuracy Class Combination | Rated Output (VA) | Limit Output (VA) | Rated Insulation Level (kV) |
|---|---|---|---|---|
| 10/0.1 | 0.2 | 20 | 300 | 12/42/75 |
| 0.5 | 30 | |||
| 10/0.22 | 3 | 300 | 500 | |
| 10/0.1/0.1 | 0.2/0.5 | 15/20 | 300 | |
| 0.5/0.5 | 20/20 | |||
| 10/0.1/0.22 | 0.2/3 | 20/300 | 300 | |
| 0.5/3 | 30/300 | |||
| Note: If user-requested parameters exceed the range specified in the above table, please consult our customer care team. | ||||
