Multi scenarios adaptable
For 10kV / 35kV overhead lines
Essential for circuit isolation & maintenance safety
Prevents mis-energization & induced voltage hazards
Overview
The Pole-Mounted Isolating Switch is a high-voltage distribution switch installed on outdoor utility poles or towers, mainly used for 10kV and 35kV overhead power lines. It is a fundamental device in distribution networks, providing circuit isolation and ensuring maintenance safety.
As the switch has no arc-extinguishing capability, it cannot interrupt load current or short-circuit current. It should only be operated when the line is unloaded and de-energized.
After disconnection, the switch forms a clear and visible insulation gap, providing reliable electrical isolation for line maintenance, transformer maintenance and equipment replacement, while helping prevent risks caused by accidental energization or induced voltage.
Structural Features
Applications
Distribution network line sectioning and interconnection
Substation supporting facilities
Safe isolation for maintenance
Rural and urban power grid renovation
Special applications: wind farm and PV power station collector lines, railway traction power supply systems, and outdoor power supply lines for industrial and mining enterprises

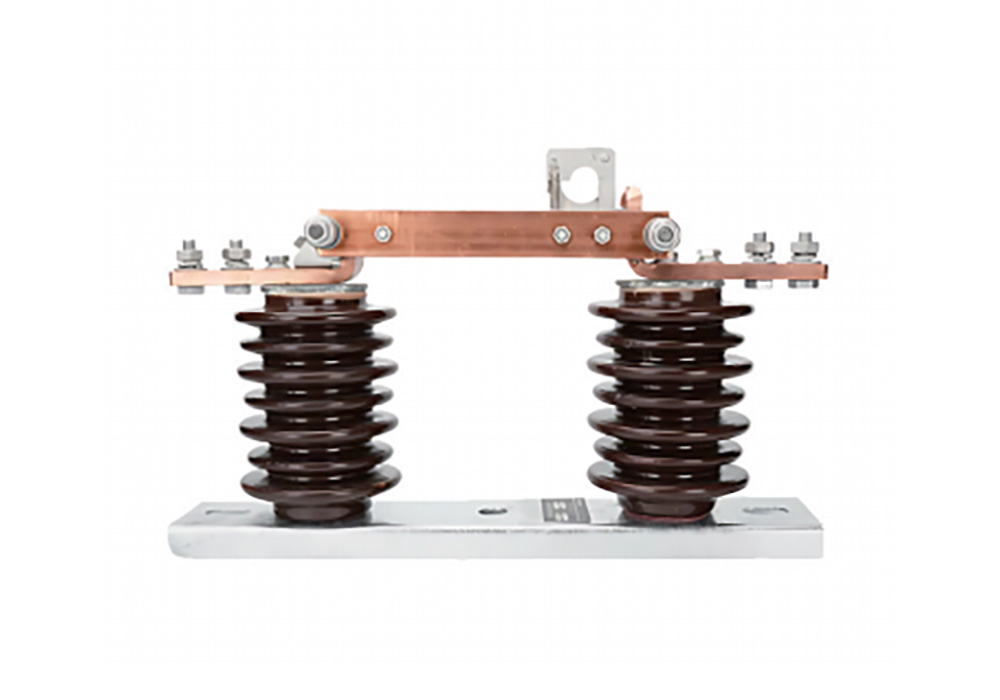

Product Photos
Technical Parameters
| Item | Parameter |
| Rated Voltage | 12kV、40.5kV(Comply with 10kV、35kV System) |
| Rated Current | 630A、1250A、2000A |
| Rated Short-time Withstand Current (2s) | 20kA、25kA、31.5kA |
| Rated Peak Withstand Current | 50kA、63kA、80kA |
| Lightning Impulse Withstand Voltage | 75kV(12kV)、185kV(40.5kV) |
